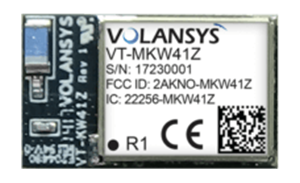

The VOL KW41Z module is an ultra-compact, low power, high sensitivity module that supports Zigbee®, Thread with IEEE 802.15.4 and Bluetooth Low Energy (BLE 4.2) RF connectivity. Built with a 32-bit ARM® Cortex® M0+ CPU operating up to 48 MHz, and an integrated chip antenna, VOL KW41Z provides OEMs with a dual RF solution for dynamic application needs, with minimal development, reduced risk, and faster time-to-market. VOL KW41Z is enriched with mikroBUS™ compatibility to connect to third-party products with a single click. It is an ideal solution for true single-chip designs that require concurrent communication on Zigbee®, Bluetooth Low Energy 4.2 and 802.15.4 based networks such as Thread, at reduced BOM cost. This multi-mode functionality as Thread module and Bluetooth module allows direct integration into thread mesh networks and direct communication with mobile devices via BLE.
- Powerful 32-bit ARM® Cortex®-M0+ operating up to 48 MHz
- Zigbee®, Thread (802.15.4) and BLE 4.2 support
- Ultra-compact design (19 mm x 11.5 mm)
- FCC, IC, CE – RED certified
- MikroBUS™ compatible option
- Configurable 9 MCU Low Power Modes
- Configurable max.output power: +3.5dbm
- Hardware encryption support for AES 128-bit
- Home and Building Control
- Smart Lighting
- Energy and Utility
- Consumer Electronics
- Healthcare
- Automotive
- Wearables
- Asset Tracking
| CPU | 32bit ARM® Cortex®-M0+ operating up to 48 MHz |
| Memory | 64KB of SRAM 512KB of Flash |
| RF Connectivity | Zigbee® Thread (IEEE 802.15.4) Bluetooth Low Energy (BLE 4.2) |
| Compatibility | MikroBUS™ compatible |
| Antenna | On-board chip antenna (chip antenna gain – 2dbi) |
| Dimensions | LxWxH – 19 mm x 11.5 mm x 2.8mm (KW41Z module) LxWxH – 25.4 mm x 28.6 mm x 12.8mm (With MikroBUS™ Interface Board) |
| Operating Temperature | -40 °C to +85 °C |
| Power | 9 MCU Low-Power Modes Low Power Mode (VLLS0) Current: ˜180 mA |
| Tx only @ 0dbm, Bypass mode | 15mA |
| Rx only, Bypass mode | 17mA |
| Normal Mode CPU @ 48MHz @ 3.0V, DC-DC enabled | 5mA |
| Supply Voltage | 0.9V – 4.2V |
| Receiver Sensitivity (BLE) | -96dbm |
| Receiver Sensitivity (802.15.4) | -100dbm |
| Programmable Transmitter Output Power | +3.5dbm |
| Bluetooth Low Energy 4.2 Modulation | GFSK |
| IEEE Standard 802.15.4 | QPSK |
| 2x SPI | Two independent SPI channel with Master and Slave mode, double buffered transmit and receive data |
| 1x UART | Single channel full duplex with hardware flow control RTS/CTS and programmable data format |
| 2x I2C | Two I2C channel, compatible with SMBus spec, up to 400KHz operation |
| ADC | 16-bit, conversation at 500Ksps, input clock selection |
| DAC | 12-bit, 1uS at high-speed and 2uS at low-speed, guaranteed 6-sigma monotonicity |
| 3x PWM | Three PWM channel (One with 4 channel and two with 2 channel), programmable prescaler |
| Timers | Single channel 16-bit low power timer |
| TSI | Supports up to 16 external electrodes, capability to wake MCU from low power modes |
| PIT | Up to two interrupt timers with 32-bit resolution |
| CMP | Up to eight selectable comparator inputs |
| RoHS | Compliant |
| FCC, FCC ID | Yes |
| CE-RED | Yes |
| IC, IC ID | Yes |
| Dimensions | L x W x H – 67.6 mm x 45.0 mm x 4.5 mm |
| Operating Temperature | Commercial: 0 to +70 °C Industrial: -40 to +85 °C Automotive: -40 to +125 °C |
| RoHS | Compliant |
| CE | Yes |
| IC | Yes |
| FCC | Yes |
| CPU | 32bit ARM® Cortex®-M0+ operating up to 48 MHz |
| Memory | 64KB of SRAM 512KB of Flash |
| RF Connectivity | Zigbee® Thread (IEEE 802.15.4) Bluetooth Low Energy (BLE 4.2) |
| Compatibility | MikroBUS™ compatible |
| Antenna | On-board chip antenna (chip antenna gain - 2dbi) |
| Dimensions | LxWxH – 19 mm x 11.5 mm x 2.8mm (KW41Z module) LxWxH – 25.4 mm x 28.6 mm x 12.8mm (With MikroBUS™ Interface Board) |
| Operating Temperature | -40 °C to +85 °C |
| Power | 9 MCU Low-Power Modes Low Power Mode (VLLS0) Current: ˜180 mA |
| Tx only @ 0dbm, Bypass mode | 15mA |
| Rx only, Bypass mode | 17mA |
| Normal Mode CPU @ 48MHz @ 3.0V, DC-DC enabled | 5mA |
| Supply Voltage | 0.9V – 4.2V |
| Receiver Sensitivity (BLE) | -96dbm |
| Receiver Sensitivity (802.15.4) | -100dbm |
| Programmable Transmitter Output Power | +3.5dbm |
| Bluetooth Low Energy 4.2 Modulation | GFSK |
| IEEE Standard 802.15.4 | QPSK |
| 2x SPI | Two independent SPI channel with Master and Slave mode, double buffered transmit and receive data |
| 1x UART | Single channel full duplex with hardware flow control RTS/CTS and programmable data format |
| 2x I2C | Two I2C channel, compatible with SMBus spec, up to 400KHz operation |
| ADC | 16-bit, conversation at 500Ksps, input clock selection |
| DAC | 12-bit, 1uS at high-speed and 2uS at low-speed, guaranteed 6-sigma monotonicity |
| 3x PWM | Three PWM channel (One with 4 channel and two with 2 channel), programmable prescaler |
| Timers | Single channel 16-bit low power timer |
| TSI | Supports up to 16 external electrodes, capability to wake MCU from low power modes |
| PIT | Up to two interrupt timers with 32-bit resolution |
| CMP | Up to eight selectable comparator inputs |
| RoHS | Compliant |
| FCC, FCC ID | Yes |
| CE-RED | Yes |
| IC, IC ID | Yes |

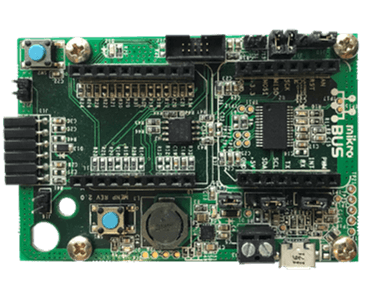

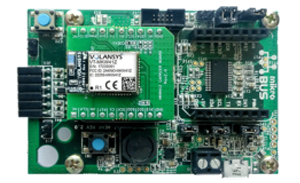

The Modular Edge Node Platform development board (MENP) is an advanced multi-module compatible end node that supports various hardware modules through mikroBUS™ connectors. VOL KW41Z module is mounted on this board to utilize the complete range of features and functions of the module.
The development board has two mikroBUS™ compatible sockets which provide SPI, I2C, UART and GPIO interfaces. This ready-to-use development board can be used to build Thread/BLE based end device prototypes with faster time to market.
For further information on this development board, read more.
KW41Z Thread/BLE Module
Part No: VT-KW41Z-R1-M00

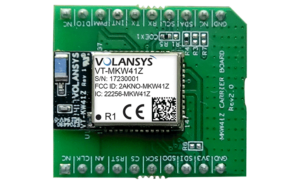

Module with MikroBUS™ Interface Board
Part No: VT-KW41Z-R1-M10
Module with MENP
Part No: VT-MENP-R2-M10
VOL KW41Z Product Brief
Download Product Brief
VOL KW41Z Datasheet
Download Datasheet
KW41Z Altium Model Footprint
Downloads Model
KW41Z Altium Model Schematic
Downloads Model
VOL KW41Z CE-RED
Downloads Certifications
VOL KW41Z FCC
Downloads Certifications
VOL KW41Z IC
Downloads Certifications
